Choose Your Vehicle Colors

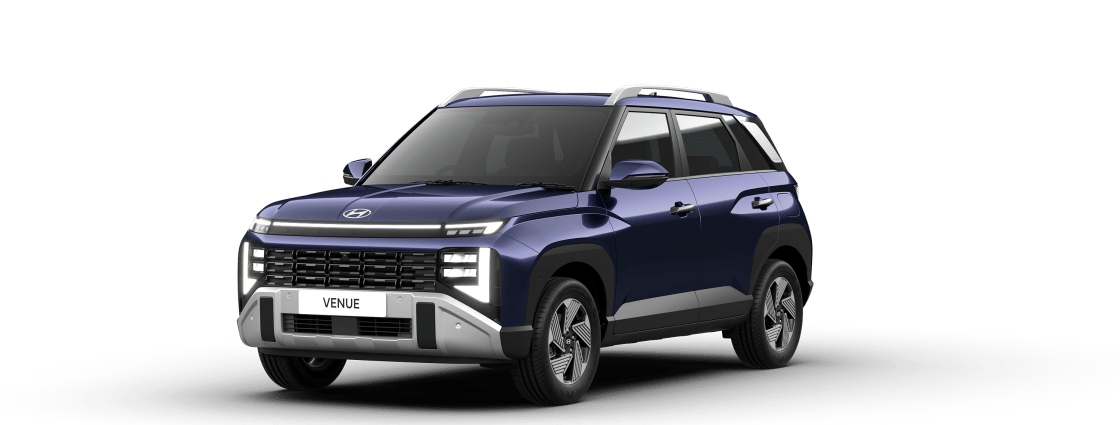

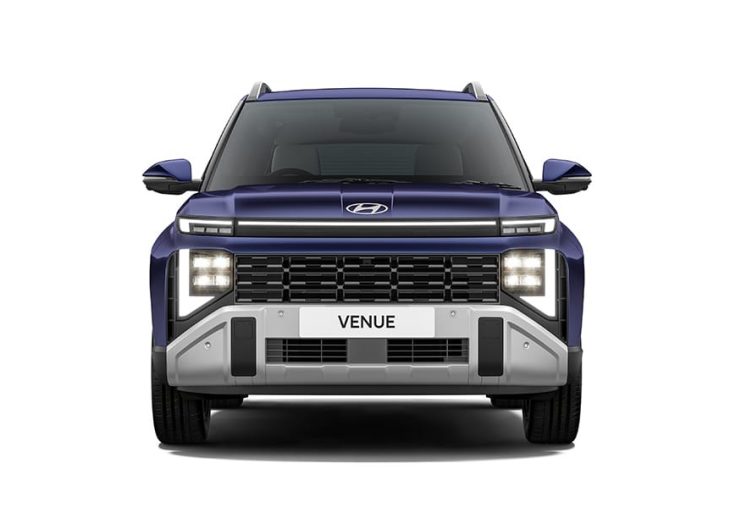

Mystic Sapphire
Disclaimer: Colors availability may vary by trims.
Hyundai Venue Car Specification
Overview
| Category | SUV |
|---|---|
| Product Label | Kappa 1.2 I Mpi Petrol |
| Model Name | VENUE |
| Seats | 5 |
-
Performance
- Engine
-
- Engine Type
- Kappa 1.2 MPi Petrol
- Fuel System
- –
- Displacement(cm3)
- 1197
- Max. Power
- 61 kW (83 PS) @ 6 000 r/min
- Max. Torque
- 114.7 Nm (11.7 kgm) @ 4200 r/min
- Configuration
- –
- Valvetrain Type
- Transmission
-
- Transmission Type
- 5-Speed Manual
- Suspension
-
- Suspension Front
- McPherson strut with coil spring
- Suspension Rear
- Coupled torsion beam axle with coil spring
- Suspension Shock Absorber
- –
- Brake
-
- Brake Front
- Disc
- Brake Rear
- Drum / Disc
- Fuel
-
- Fuel Type
- Petrol
- Fuel Tank Capacity
- 45 l
-
Dimension
- Exterior
-
- Overall Length (mm)
- 3995 mm
- Overall Width (mm)
- 1800 mm
- Overall Height (mm)
- 1665^ mm
- Wheelbase (mm)
- 2520 mm
- Space
-
- Boot Space
- –
-
Wheels
- Exterior
-
- Size
- 195/65 R15 (D = 380.2 mm) Steel wheel with cover | 215/60 R16 (D = 405.6 mm) Styled Steel wheel
- Front Tyres
- 215/60 R16 (D = 405.6 mm) Diamond Cut Alloy wheel/dd>
- Spare wheel
- 195 / 65 R15 (D = 380.2 mm) steel wheel
Overview
| Category | SUV |
|---|---|
| Product Label | U2 1.5 I CRDi Diesel |
| Model Name | VENUE |
| Seats | 5 |
-
Performance
- Engine
-
- Engine Type
- U2 1.5 l CRDi Diesel
- Fuel System
- –
- Displacement(cm3)
- 1493
- Max. Power
- 85 kW (116 PS) @ 4 000 r/min
- Max. Torque
- 250 Nm (25.5 kgm) @ 1500-2750 r/min
- Configuration
- –
- Transmission
-
- Transmission Type
- 6-Speed Manual, 6 -speed automatic
- Suspension
-
- Suspension Front
- McPherson strut with coil spring
- Suspension Rear
- Coupled torsion beam axle with coil spring
- Suspension Shock Absorber
- Brake
-
- Brake Front
- Disc
- Brake Rear
- Drum / Disc
- Fuel
-
- Fuel Type
- Diesel
- Fuel Tank Capacity
- 45 l
-
Dimension
- Exterior
-
- Overall Length (mm)
- 3995 mm
- Overall Width (mm)
- 1800 mm
- Overall Height (mm)
- 1665^ mm
- Wheelbase (mm)
- 2520 mm
-
Wheels
- Exterior
-
- Size
- 195/65 R15 (D = 380.2 mm) Steel wheel with cover | 215/60 R16 (D = 405.6 mm) Styled Steel wheel
- Front Tyres
- 215/60 R16 (D = 405.6 mm) Diamond Cut Alloy wheel
- Spare wheel
- 195 / 65 R15 (D = 380.2 mm) steel wheel
Overview
| Category | SUV |
|---|---|
| Product Label | U2 1.5 I CRDi Diesel |
| Model Name | VENUE |
| Seats | 5 |
-
Performance
- Engine
-
- Engine Type
- Kappa 1.0 Turbo GDi
- Fuel System
- –
- Displacement(cm3)
- 998
- Max. Power
- 88.3 kW (120 PS) @6 000 r/min
- Max. Torque
- 172 Nm (17.5 kgm) @ 1500-4000 r/min
- Configuration
- –
- Transmission
-
- Transmission Type
- 6-speed manual ,7-Speed DCT
- Suspension
-
- Suspension Front
- McPherson strut with coil spring
- Suspension Rear
- CoCoupled torsion beam axle with coil spring
- Suspension Shock Absorber
- Brake
-
- Brake Front
- Disc
- Brake Rear
- Drum (EDrum / Disc
- Fuel
-
- Fuel Type
- Petrol
- Fuel Tank Capacity
- 45 l
-
Dimension
- Exterior
-
- Overall Length (mm)
- 3995 mm
- Overall Width (mm)
- 1800 mm
- Overall Height (mm)
- 1665^ mm
- Wheelbase (mm)
- 2520 mm
-
Wheels
- Exterior
-
- Size
- 195/65 R15 (D = 380.2 mm) Steel wheel with cover | 215/60 R16 (D = 405.6 mm) Styled Steel wheel
- Front Tyres
- 215/60 R16 (D = 405.6 mm) Diamond Cut Alloy wheel
- Spare wheel
- 195 / 65 R15 (D = 380.2 mm) steel wheel
Hyundai VENUE Car Features
| Engine and Trim Plan | HX2 | HX4 | HX5 | HX5+ | HX6 | HX6T | HX7 | HX8 | HX10 |
|---|---|---|---|---|---|---|---|---|---|
| Kappa 1.2 l MPi petrol | MT | MT | MT | MT | – | MT | – | – | – |
| Kappa 1.0 l Turbo GDi petrol | MT | – | MT/DCT | – | DCT | – | – | MT/DCT | DCT |
| U2 1.5 l CRDi VGT diesel | MT | – | MT/AT | – | – | – | MT | AT | AT |
| Feature | HX2 | HX4 | HX5 | HX5+ | HX6 | HX6T | HX7 | HX8 | HX10 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Airbag | Driver & passenger | S | S | S | S | S | S | S | S | S |
| Side & Curtain | S | S | S | S | S | S | S | S | S | |
| Rollover sensor | S | S | S | S | S | S | S | S | S | |
| ABS(Anti-Lock braking system) with EBD | S | S | S | S | S | S | S | S | S | |
| Electronic stability control (ESC) | S | S | S | S | S | S | S | S | S | |
| Vehicle stability management (VSM) | S | S | S | S | S | S | S | S | S | |
| Hill sssist control (HAC) | S | S | S | S | S | S | S | S | S | |
| Tyre pressure monitoring system (TPMS) highline | – | S | S | S | S | S | S | S | S | |
| Disc brakes | Front | S | S | S | S | S | S | S | S | S |
| Rear | – | – | – | – | – | – | – | S^ | S | |
| Seat belt pretensioners – driver & passenger | S | S | S | S | S | S | S | S | S | |
| 3 point seat belt (all seats) | S | S | S | S | S | S | S | S | S | |
| seat belt remainder (all seats) | S | S | S | S | S | S | S | S | S | |
| ISOFIX | S | S | S | S | S | S | S | S | S | |
| Emergency stop signal (ESS) | S | S | S | S | S | S | S | S | S | |
| Impact sensing Auto door unloack | S | S | S | S | S | S | S | S | S | |
| Speed sensing auto door lock | S | S | S | S | S | S | S | S | S | |
| Driver power window with auto up down & safety | – | – | – | S | S | S | S | S | S | |
| Immobilizer | S | S | S | S | S | S | S | S | S | |
| Burglar alarm | S | S | S | S | S | S | S | S | S | |
| Central locking | S | S | S | S | S | S | S | S | S | |
| Inside rear view mirror | Day & night mirror | S | S | S | S | S | S | S | S | S |
| Electrochromic mirror (ECM) with telematics switches | – | – | – | – | – | – | – | – | S | |
| Automatic headlamps | – | – | – | – | S | S | S | S | S | |
| Headlamp escort function | S | S | S | S | S | S | S | S | S | |
| Rear defogger with timer | – | S | S | S | S | S | S | S | S | |
| Puddle lamps with welcome function | – | – | – | – | S^ | – | S | S | S | |
| Parking Assist | Rear parking sensor | S | S | S | S | S | S | S | S | S |
| Rear camera with dynamic guidelines | – | S | S | S | S | S | S | S | S | |
| Front parking sensors | – | – | – | – | – | – | – | – | S | |
| Side parking sensors | – | – | – | – | – | – | – | – | S | |
| Driver rear view monitor (DRVM) | – | S | S | S | S | S | S | S | S | |
| Hyundai Smartsense (Advanced Driver Assist System) | Forward Collision Warning (FCW) | – | – | – | – | – | – | – | – | S |
| Forward Collision-Avoidance Assist- Car (FCA-Car) | – | – | – | – | – | – | – | – | S | |
| Forward Collision-Avoidance Assist- Pedestrian (FCA-Ped) | – | – | – | – | – | – | – | – | S | |
| Forward Collision-Avoidance Assist- Cycle (FCA-Cyl) | – | – | – | – | – | – | – | – | S | |
| Forward Collision-Avoidance Assist- Junction Turning (FCA-JT) | – | – | – | – | – | – | – | – | S | |
| Forward Collision-Avoidance Assist- Direct Oncoming | – | – | – | – | – | – | – | – | S | |
| Lane Keeping Assist (LKA) | – | – | – | – | – | – | – | – | S | |
| Lane Departure Warning (LDW) | – | – | – | – | – | – | – | – | S | |
| Driver Attention Warning (DAW) | – | – | – | – | – | – | – | – | S | |
| Smart Cruise Control with Stop & Go (SCC with S&G) | – | – | – | – | – | – | – | – | S | |
| Lane Following Assist (LFA) | – | – | – | – | – | – | – | – | S | |
| High Beam Assist (HBA) | – | – | – | – | – | – | – | – | S | |
| Leading Vehicle Departure Alert (LVDA) | – | – | – | – | – | – | – | – | S | |
| Parking Collision Avoidance Assist- Rear (PCA-R) | – | – | – | – | – | – | – | – | S | |
| Surround View Monitor (SVM) | – | – | – | – | – | – | – | – | S | |
| Blind Spot View Monitor (BVM) | – | – | – | – | – | – | – | – | S | |
| Feature | HX2 | HX4 | HX5 | HX5+ | HX6 | HX6T | HX7 | HX8 | HX10 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Wheels | R15 (D=380.2 mm) steel wheels with wheel cover | 1.2PL only | S | 1.2PL only | S | 1.2PL only | S | – | – | – |
| R16 (D=405.6 mm) dual tone styled steel wheels | S## | – | S## | – | S^ | – | – | – | – | |

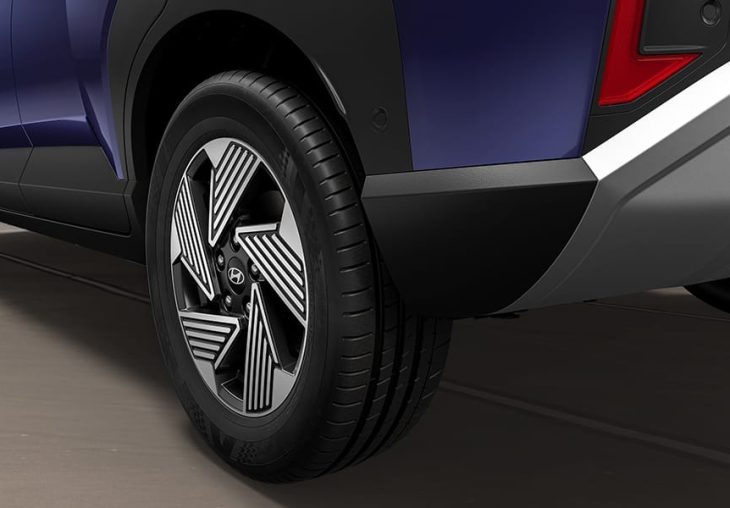

| R16 (D=405.6 mm) diamond cut alloys | – | – | – | – | – | – | S | S | S | |

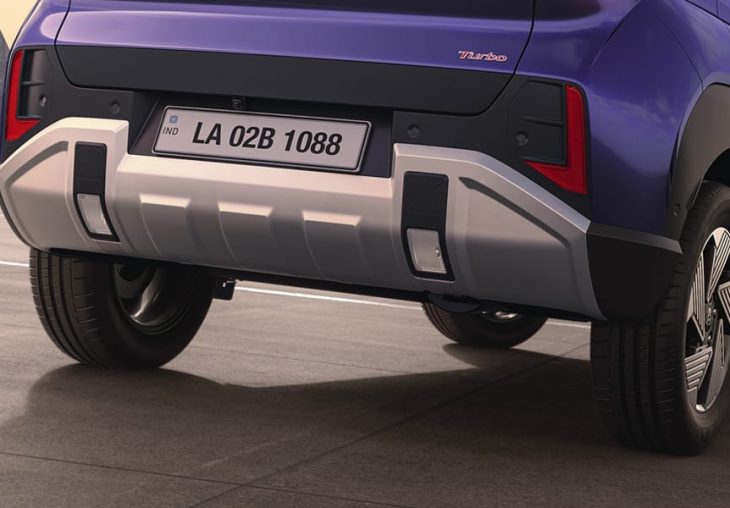

| Bold skid plate (Front & rear) | S | S | S | S | S | S | S | S | S | |
| Signature C-pillar garnish | S | S | S | S | S | S | S | S | S | |
| Lighting | Projector headlamps (Bi-function) | S | S | S | – | – | – | – | – | – |

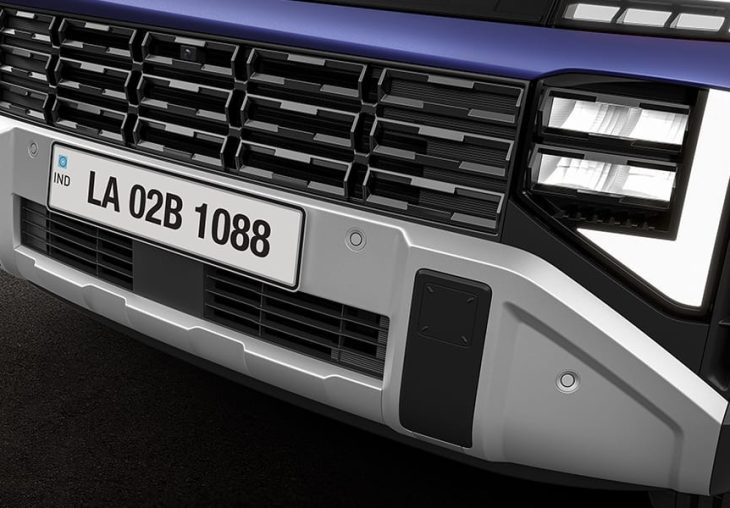

| Quad beam LED headlamps | – | – | – | S | S | S | S | S | S | |
| LED DRLs & positioning lamps | S | S | S | S | S | S | S | S | S | |
| Horizon LED positioning lamp | – | – | – | – | – | – | S | S | S | |
| LED high mounted stop lamp (HMSL) | S | S | S | S | S | S | S | S | S | |
| LED tail lamps | S | S | S | S | S | S | S | S | S | |

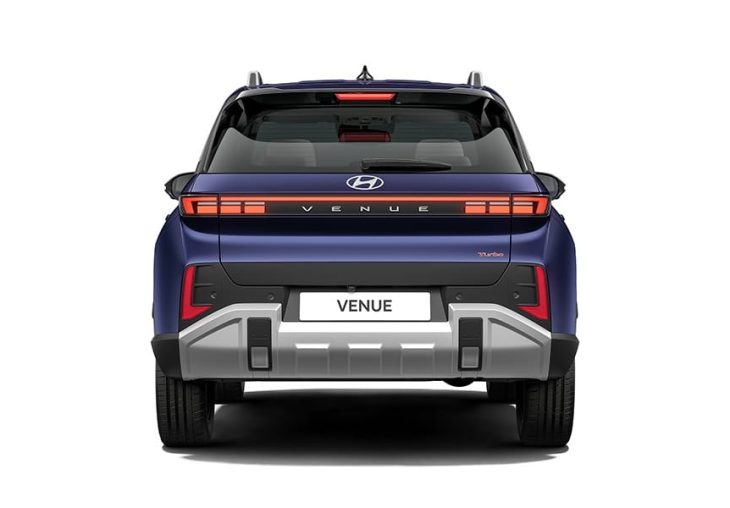

| Rear horizon LED lamp | – | – | – | – | – | – | S | S | S | |
| LED turn indicators | – | – | – | – | – | – | S | S | S | |
| Turn indicators on outside mirrors (ORVM) | – | S | S | S | S | S | S | S | S | |
| Radiator grille | Black painted | S | – | – | – | – | – | – | – | – |
| Dark chrome | – | S | S | S | S | S | S | S | S | |
| Outside door mirrors (ORVM) – Body Colour | S | S | S | S | S | S | S | S | S | |
| Outside door handles | Body Coloured | S | S | S | S | – | – | – | – | – |
| Dark Chrome | – | – | – | – | S | S | S | S | S | |
| Roof rails | – | – | – | S | S | S | S | S | S | |
| Shark fin antenna | S | S | S | S | S | S | S | S | S | |
| Rear spoiler – body Colour | S | S | S | S | S | S | S | S | S | |
| Dual tone pack(Painted black) | Rear spoiler | – | – | – | S | S | S | S | S | S |
| Outside door mirrors (ORVM) | – | – | – | S | S | S | S | S | S | |
| Feature | HX2 | HX4 | HX5 | HX5+ | HX6 | HX6T | HX7 | HX8 | HX10 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Dual integrated displays | S | S | S | S | S | S | S | S | – | |
| Dual curved panoramic displays | – | – | – | – | – | – | – | – | S | |
| Interiors | All black | S | – | – | – | – | – | – | – | – |
| Dual tone (Dark grey and dove grey) | – | S | S | S | S | S | S | – | – | |
| Dual tone (Dark navy & dove grey) with terrazzo texture | – | – | – | – | – | – | – | S | S | |
| Seat upholstery | Fabric | S | – | – | – | – | – | – | – | – |
| Dual Tone Fabric | – | S | S | S | S | S | S | – | – | |
| Dual Tone Leather^^ Seats with VENUE branding | – | – | – | – | – | – | – | S | S | |
| Leather^ Pack | Steering Wheel | – | – | – | – | S^ | – | S | S | S |
| Premium door armrest | – | – | – | – | – | – | – | S | S | |
| Gear shift knob | – | – | – | – | S | S | S | S | S | |
| Height adjustable headrest | Front | S | S | S | S | S | S | S | S | S |
| Rear | – | – | – | – | S^ | – | S | S | S | |
| Driver seat adjust | Manual height adjust | – | S | S | S | S | S | S | – | – |
| Electric 4-way | – | – | – | – | – | – | – | S | S | |
| 60:40 split rear seat | – | – | – | – | S^ | – | S | S | S | |
| 2-step rear reclining seat | – | – | – | – | S^ | – | S | S | S | |
| Rear window sunshade | – | – | – | S | S | S | S | S | S | |
| Ambient lighting (Moon white) | Crashpad | – | – | – | – | – | – | S | S | S |
| Centre console | – | – | – | – | – | – | – | S^ | S | |
| Rear parcel tray | – | – | – | – | S | S | S | S | S | |
| D-Cut steering wheel | S | S | S | S | S | S | S | S | S | |
| Feature | HX2 | HX4 | HX5 | HX5+ | HX6 | HX6T | HX7 | HX8 | HX10 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Infotainment system | 26.03 cm (10.25”) ccNC infotainment system | S | S | S | S | S | S | S | S | – |
| 31.24 cm (12.3”) ccNC navigation system | – | – | – | – | – | – | – | – | S | |
| Smartphone connectivity – Android Auto & Apple Carplay | Wireless | S | S | S | S | S | S | S | S | S |
| Digital cluster | Digital cluster with 10.66 cm color TFT display | S | S | S | S | S | S | S | S | – |
| 31.24 cm (12.3”) Full digital display cluster | – | – | – | – | – | – | – | – | S | |
| Bose premium sound 8 speaker system | – | – | – | – | – | – | – | – | S | |
| Front & rear speakers | S | S | S | S | S | S | S | S | S | |
| Front tweeters | – | – | – | – | S | S | S | S | S | |
| Bluetooth connectivity | S | S | S | S | S | S | S | S | S | |
| Steering wheel with audio and bluetooth controls | S | S | S | S | S | S | S | S | S | |
| Voice recognition* | S | S | S | S | S | S | S | S | S | |
| Hyundai Bluelink (Connected car technology) | ccNC Basic | – | – | – | – | – | S | S | S | – |
| ccNC Full | – | – | – | – | – | – | – | – | S | |
| Controller Over-the-Air (OTA) vehicle updates | – | – | – | – | – | – | – | – | S | |
| Feature | HX2 | HX4 | HX5 | HX5+ | HX6 | HX6T | HX7 | HX8 | HX10 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Sunroof | Smart electric | – | – | S | S | S | S | S | S | – |
| Voice enabled smart electric | – | – | – | – | – | – | – | – | S | |
| Air conditioning | Manual | S | S | S | S | – | – | – | – | – |
| Fully automatic temperature control | – | – | – | – | S | S | S | S | S | |
| Front row ventilated seats | – | – | – | – | – | – | – | S | S | |
| Electric parking brake with auto hold | – | – | – | – | – | – | – | S^ | S | |
| Smartphone wireless charger* | – | – | – | S | S | S | S | S | S | |
| Drive mode select (Eco, Normal, Sport) | – | – | – | – | – | – | – | S^ | S | |
| Traction control modes (Sand, mud, snow) | – | – | – | – | – | – | – | S^ | S | |
| Paddle shifters | – | – | S^ | – | S^ | – | – | S^ | S | |
| Cruise control | – | – | S## | – | S^ | – | S | S | S | |
| Keyless entry | Foldable key | S | S | 1.5DSL only | – | – | – | – | – | – |
| Smart key with push button start | – | – | S&& | S | S | S | S | S | S | |
| Outside mirrors | Electrically adjustable | S | S | S | S | S | S | S | S | S |
| Electric folding | – | S | S | S | S | S | S | S | S | |
| Auto fold | – | S | S | S | S | S | S | S | S | |
| Remote engine start with smart key | S | S | 1.0 T-PL Only | – | 1.0 T-PL Only | – | S | S | S | |
| Driver console armrest with storage | – | – | S^ | S | S | S | S | S | S | |
| Rear centre armrest with cupholders | – | – | – | – | S^ | – | S | S | S | |
| Rear AC vents | S | S | S | S | S | S | S | S | S | |
| USB charger (C -Type) | Front (x2) | S | S | S | S | S | S | S | S | S |
| Rear (x2) | S | S | S | S | S | S | S | S | S | |
| Front & rear power windows | S | S | S | S | S | S | S | S | S | |
| Power outlet | S | S | S | S | S | S | S | S | S | |
| Motor driven power steering with tilt function | S | S | S | S | S | S | S | S | S | |
| Luggage lamp | – | – | – | – | S^ | – | S | S | S | |
| Rear wiper & washer | – | – | – | S | S | S | S | S | S | |
| Idle stop & go (ISG) | – | – | – | – | – | – | – | – | 1.0 T-PL Only | |
| Passenger vanity mirror | – | – | – | – | S | S | S | S | S | |
| Map lamps | S | S | S | S | S | S | S | S | S | |
| Glovebox cooling | – | – | – | – | S^ | – | S | S | S | |
