Choose Your Vehicle Colors

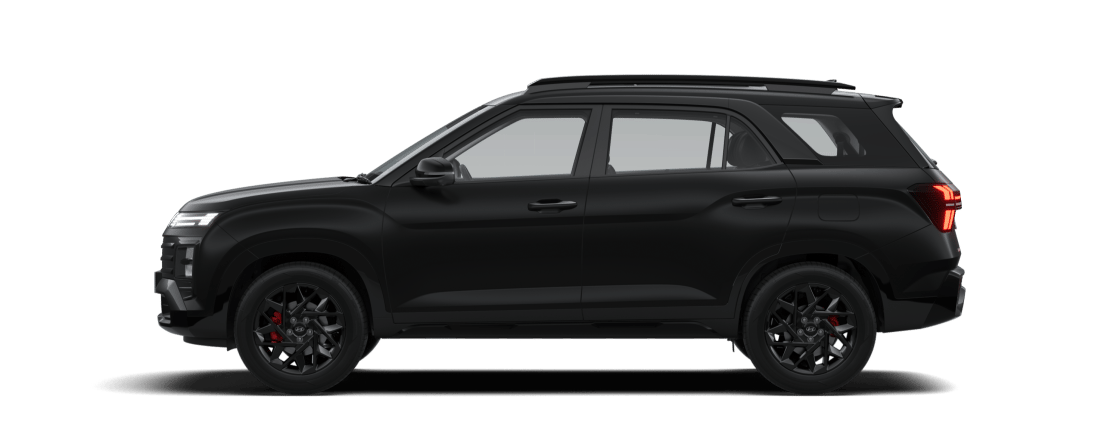

Abyss Black Matte - Knight
Disclaimer: Colors availability may vary by trims.
Hyundai ALCAZAR Car Specification
Overview
| Category | SUV |
|---|---|
| Product Label | 1.5l U2 CRDi diesel |
| Model Name | ALCAZAR |
| Seats | 7 |
-
Performance
- Engine
-
- Engine Type
- 1.5 CRDi
- Fuel System
- Diesel
- Displacement(cm3)
- 1493
- Max. Power
- 85 kW (116 PS) @ 4 000 r/min
- Max. Torque
- 250 Nm (25.5 kgm) @ 1 500-2750 r/min
- Configuration
- 4 cylinders, 16 valves
- Valvetrain Type
- DOHC
- Transmission
-
- Transmission Type
- 6 MT, 6AT
- Suspension
-
- Suspension Front
- McPherson Strut with Coil Spring
- Suspension Rear
- Coupled Torsion Beam Axle (CTBA)
- Suspension Shock Absorber
- –
- Brake
-
- Brake Front
- Disc
- Brake Rear
- Disc
- Fuel
-
- Fuel Type
- Diesel
- Fuel Tank Capacity
- 50 l
-
Dimension
- Exterior
-
- Overall Length (mm)
- 4560 mm
- Overall Width (mm)
- 1800 mm
- Overall Height (mm)
- 1710^^ mm
- Wheelbase (mm)
- 2760 mm
- Space
-
- Boot Space
- –
-
Wheels
- Exterior
-
- Size
- 215/55 R18 (D=462 mm) alloy (Platinum, Signature, Signature Knight)
- Front Tyres
- 215/60 R17 (D=436.6 mm) alloy (executive, prestige)
- Spare wheel
- 215/60 R17 (D=436.6 mm) steel DSL: Tyre mobility kit (TMK)
- Front Tyres
- Tubeless
Overview
| Category | SUV |
|---|---|
| Product Label | 1.5l Turbo GDi petrol |
| Model Name | ALCAZAR |
| Seats | 7 |
-
Performance
- Engine
-
- Engine Type
- 1.5l Turbo GDi
- Fuel System
- GDi
- Displacement(cm3)
- 1482
- Max. Power
- 117.5 kW (160 PS) @ 5 500 r/min
- Max. Torque
- 253 Nm(25.8 kgm) @ 1500 –3500 r/min
- Configuration
- 4 cylinders, 16 valves
- Valvetrain Type
- DOHC
- Transmission
-
- Transmission Type
- 6 MT , 7 DCT
- Suspension
-
- Suspension Front
- McPherson Strut with Coil Spring
- Suspension Rear
- Coupled Torsion Beam Axle (CTBA)
- Suspension Shock Absorber
- –
- Brake
-
- Brake Front
- Disc
- Brake Rear
- Disc
- Fuel
-
- Fuel Type
- Petrol
- Fuel Tank Capacity
- 50 l
-
Dimension
- Exterior
-
- Overall Length (mm)
- 4560 mm
- Overall Width (mm)
- 1800 mm
- Overall Height (mm)
- 1710^^ mm
- Wheelbase (mm)
- 2760 mm
-
Wheels
- Exterior
-
- Size
- 215/55 R18 (D=462 mm) alloy (Platinum, Signature, Signature Knight)
- Front Tyres
- 215/60 R17 (D=436.6 mm) alloy (executive, prestige)
- Spare wheel
- 215/60 R17 (D=436.6 mm) steel DSL: Tyre mobility kit (TMK)
- Front Tyres
- Tubeless
Hyundai ALCAZAR Car Features
| Engine & trim plan | Executive | Prestige | Corporate | Platinum | Signature | Signature Knight | |
|---|---|---|---|---|---|---|---|
| 1.5l Turbo GDi petrol | 6 seater | – | – | – | – | DCT | – |
| 7 seater | MT | MT / DCT | – | MT | DCT | DCT | |
| 1.5l U2 CRDi diesel | 6 seater | – | – | – | – | AT | – |
| 7 seater | MT | – | MT/ AT | MT | AT | AT | |
| Feature | Executive | Prestige | Corporate | Platinum | Signature | Signature Knight | |
|---|---|---|---|---|---|---|---|

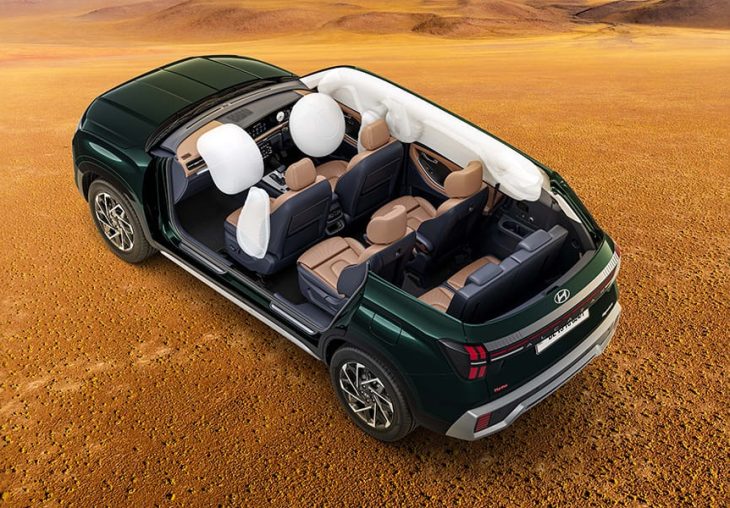

| Airbag | Driver & passenger | S | S | S | S | S | S |
| Side & curtain | S | S | S | S | S | S | |
| ABS (Anti-lock braking system) with EBD | S | S | S | S | S | S | |
| Electronic stability control (ESC) | S | S | S | S | S | S | |
| Vehicle stability management (VSM) | S | S | S | S | S | S | |
| Hill-start assist control (HAC) | S | S | S | S | S | S | |
| Hill descent control (HDC) | – | S# | S# | S | S | S | |
| Tyre pressure monitoring system (TPMS) highline | S | S | S | S | S | S | |
| Rear disc brakes | S | S | S | S | S | S | |
| Emergency stop signal (ESS) | S | S | S | S | S | S | |
| Parking Assist | Rear parking sensors | S | S | S | S | S | S |
| Rear camera with dynamic guidelines | S | S | S | S | S | S | |
| Front parking sensors | – | – | – | S | S | S | |
| Rain sensing wipers | – | – | – | S | S | S | |
| Automatic headlamps | S | S | S | S | S | S | |
| Headlamp escort function | S | S | S | S | S | S | |
| Rear defogger with timer | S | S | S | S | S | S | |
| Puddle lamps with logo projection | – | – | – | S | S | S | |
| Inside rear view mirror | Day and night mirror | S | – | – | – | – | – |
| Electro chromic mirror (ECM) with telematics switches | – | S | S | S | S | S | |
| Driver rear view monitor (DRVM) | – | S | S | S | S | S | |
| Speed sensing auto door lock | S | S | S | S | S | S | |
| Impact sensing auto door unlock | S | S | S | S | S | S | |
| Height adjustable front seatbelts | S | S | S | S | S | S | |
| Seat belt pretensioners – driver & passenger | S | S | S | S | S | S | |
| Driver anchor pretensioner | S | S | S | S | S | S | |
| Child seat anchor (ISOFIX) | S | S | S | S | S | S | |
| Driver power window with auto up-down & safety | S | S | S | S | S | S | |
| Inside door override (Driver only) | S | S | S | S | S | S | |
| Burglar alarm | S | S | S | S | S | S | |
| Immobilizer | S | S | S | S | S | S | |
| Central locking | S | S | S | S | S | S | |
| 3 Point seat belts (all seats) | S | S | S | S | S | S | |
| Seatbelt reminder (all seats) | S | S | S | S | S | ||
| Hyundai Smartsense (Advanced Driver Assistance System) | Forward Collision Warning (FCW) | – | – | – | S | S | S |
| Forward Collision – Avoidance Assist – Car (FCA-Car) | – | – | – | S | S | S | |
| Forward Collision – Avoidance Assist – Pedestrian (FCA-Ped) | – | – | – | S | S | S | |
| Forward Collision – Avoidance Assist – Cycle (FCA-Cyl) | – | – | – | S | S | S | |
| Forward Collision – Avoidance Assist – Junction Turning (FCA-JT) | – | – | – | S | S | S | |
| Blind-spot Collision Warning (BCW) | – | – | – | S | S | S | |
| Blind-spot Collision – Avoidance Assist (BCA) | – | – | – | S | S | S | |
| Lane Keeping Assist (LKA) | – | – | – | S | S | S | |
| Lane Departure Warning (LDW) | – | – | – | S | S | S | |
| Driver Attention Warning (DAW) | – | – | – | S | S | S | |
| Safe Exit Warning (SEW) | – | – | – | S | S | S | |
| Smart Cruise Control with Stop & Go (SCC with S&G) | – | – | – | – | S | S | |
| Lane Following Assist (LFA) | – | – | – | S | S | S | |
| High Beam Assist (HBA) | – | – | – | S | S | S | |
| Leading Vehicle Departure Alert (LVDA) | – | – | – | S | S | S | |
| Rear Cross – Traffic Collision Warning (RCCW) | – | – | – | S | S | S | |
| Rear Cross – Traffic Collision – Avoidance Assist (RCCA) | – | – | – | S | S | S | |
| Surround view Monitor (SVM) | – | – | – | S | S | S | |
| Blind – spot view monitor (BVM) | – | – | – | S | S | S | |
| Dashcam | – | – | – | – | S | S | |
| Feature | Executive | Prestige | Corporate | Platinum | Signature | Signature Knight | |
|---|---|---|---|---|---|---|---|
| Lighting | Quad beam LED headlamps | S | S | S | S | S | S |
| Horizon LED positioning lamp & H shaped LED DRLs | S | S | S | S | S | S | |
| LED tail lamps | S | S | S | S | S | S | |
| Rear horizon LED lamp | S | S | S | S | S | S | |
| LED high mounted stop lamp (HMSL) | S | S | S | S | S | S | |
| LED turn signal with sequential function | S | S | S | S | S | S | |
| LED turn indicators on outside mirrors | S | S | S | S | S | S | |
| Wheels | R17 (D=436.6 mm) Diamond cut alloys | S | S | S | – | – | – |
| R18 (D=462 mm) Diamond cut alloys | – | – | – | S | S | – | |
| R18 (D=462 mm) Black alloys | – | – | – | – | – | S | |
| Radiator grille | Dark chrome | S | S | S | S | S | – |
| Black painted | – | – | – | – | – | S | |
| Black painted body cladding | S | S | S | S | S | S | |
| Front & rear skid plate | Silver | S | S | S | S | S | – |
| Black Painted | – | – | – | – | – | S | |
| Side sill garnish | Silver | S | S | S | S | S | – |
| Black painted | – | – | – | – | – | S | |
| Outside door handles | Chrome | – | S | S | S | S | – |
| Black painted | – | – | – | – | – | S | |
| Outside door mirrors | Body colour | S | S | S | S | S | – |
| Black painted | – | – | – | – | – | S | |
| Rear spoiler | Body colour | S | S | S | S | S | – |
| Black painted | – | – | – | – | – | S | |
| Bridge type roof rails | Silver | S | S | S | S | S | – |
| Black painted | – | – | – | – | – | S | |
| Twin tip muffler | S | S | S | S | S | S | |
| Antenna | Shark fin | – | S | S | S | S | S |
| Micro roof | S | – | – | – | – | – | |
| Dual tone pack(Black painted) | Roof rails | – | – | – | S | S | – |
| Outside door mirrors | – | – | – | S | S | – | |
| Rear Spoiler | – | – | – | S | S | – | |
| Red brake callipers (Front & rear) | – | – | – | – | – | S | |
| Knight Emblem | – | – | – | – | – | S | |
| Knight Emblem | Brushed silver | S | S | S | S | S | – |
| Black painted | – | – | – | – | – | S | |
| Feature | Executive | Prestige | Corporate | Platinum | Signature | Signature Knight | |
|---|---|---|---|---|---|---|---|
| All black with brass inserts | – | – | – | – | – | S | |
| Dual tone Noble Brown & Haze Navy interiors | S | S | S | S | S | – | |
| Seat upholstery | Fabric | S | S | S | – | – | – |
| Leather^ | – | – | – | S | S | – | |
| Exclusive black leather seat upholstery | – | – | – | – | – | S | |
| Leather^ pack | Perforated Steering wheel | S | S | S | S | S | S |
| Perforated gear knob | S | S | S | S | S | S | |
| Door armrest | – | – | – | S | S | S | |
| Inside door handles (Metal finish) | S | S | S | S | S | S | |
| Sporty metal pedal | – | – | – | – | – | S | |
| Moon white ambient light | Crashpad | S | S | S | S | S | – |
| Front & rear doors | S | S | S | S | S | – | |
| Front Console – Drive mode select (DMS) & cup holders | – | S# | S# | – | S | – | |
| Amber ambient light | Crashpad | – | – | – | – | – | S |
| Front & rear doors | – | – | – | – | – | S | |
| Front Console – Drive mode select (DMS) & cup holders | – | – | – | – | – | S | |
| D-Cut steering wheel | S | S | S | S | S | S | |
| Door scuff plates | S | S | S | S | S | S | |
| Feature | Executive | Prestige | Corporate | Platinum | Signature | Signature Knight | |
|---|---|---|---|---|---|---|---|
| Smart key with push button start | S | S | S | S | S | S | |
| Remote engine start with smart key | S | S | S | S | S | S | |
| Dual zone automatic temperature control (DATC) | S | S | S | S | S | S | |
| Sliding front console armrest with storage | S | S | S | S | S | S | |
| Front row seatback table with IT device holder & retractable cup-holder | S | S | S | S | S | S | |
| Electric parking brake with auto hold | – | S# | S# | S | S | S | |
| Digital key | – | – | – | – | S | S | |
| Ventilated seats | Front row | – | – | – | – | S | S |
| 2nd row | – | – | – | – | 6S | – | |
| 2nd Row Comfort | Wing type headrest | – | – | – | – | 6S | – |
| Thigh cushion extension | – | – | – | – | 6S | – | |
| Passenger seat walk-in device | – | – | – | – | S | S | |
| 2nd row headrest cushion | – | – | – | 7S | 7S | 7S | |
| Smartphone wireless charger* | Front row | – | S | S | S | S | S |
| 2nd row | – | – | – | S | S | S | |
| Rear centre armrest | 7S | 7S | 7S | 7S | 7S | 7S | |
| Voice enabled smart panoramic sunroof | – | PL only | S | PL only | PL only | PL only | |
| Rear window sunshade | S | S | S | S | S | S | |
| Motor driven power steering | Tilt function | S | S | S | S | S | S |
| Telescopic function | S | S | S | S | S | S | |
| Front row sliding sunvisor | S | S | S | S | S | S | |
| Drive mode select (Eco, Normal, Sport) | – | S# | S# | – | S | S | |
| Traction control modes (Snow, Mud, Sand) | – | S# | S# | – | S | S | |
| Paddle shifters | – | S# | S# | – | S | S | |
| Cruise control | S | S | S | S | S | S | |
| Outside mirror | Electrically adjustable | S | S | S | S | S | S |
| Electric folding | S | S | S | S | S | S | |
| Auto fold | S | S | S | S | S | S | |
| Rear AC vent | 2nd row | S | S | S | S | S | S |
| 3rd row with speed control (3-stage) | S | S | S | S | S | S | |
| USB charger (C-type) | Front row | S | S | S | S | S | S |
| 2nd row | S | S | S | S | S | S | |
| 3rd row | 1 unit | 1 unit | 1 unit | 1 units | 1 units | 1 units | |
| Rear wiper and washer | S | S | S | S | S | S | |
| Power outlet | S | S | S | S | S | S | |
| LED map lamp | S | S | S | S | S | S | |
| LED reading lamps | – | S | S | PL only | PL only | PL only | |
| LED centre lamp | S | – | – | DSL only | DSL only | DSL only | |
| Luggage lamp | S | S | S | S | S | S | |
| Power windows | Front | S | S | S | S | S | S |
| Rear | S | S | S | S | S | S | |
| Sunglass holder | S | S | S | S | S | S | |
| Passenger vanity mirror | S | S | S | S | S | S | |
| Glovebox cooling | S | S | S | S | S | S | |
| Electric tailgate release | S | S | S | S | S | S | |
| Idle stop & go (ISG) | S | S | S | S | S | S | |
| Feature | Executive | Prestige | Corporate | Platinum | Signature | Signature Knight | |
|---|---|---|---|---|---|---|---|
| Height adjustable headrest – all 3 rows | S | S | S | S | S | S | |
| Front row | Driver seat manual height adjust | S | S | S | – | – | – |
| Driver seat electric 8 way | – | – | – | S | S | S | |
| Driver power seat memory function | – | – | – | – | S | S | |
| 2nd row | Passenger seat electric 8 way | – | – | – | – | S | S |
| Sliding & reclining seat | S | S | S | S | S | S | |
| Captain seats with seat mounted armrest | – | – | – | – | 6S | – | |
| 60:40 split seat | 7S | 7S | 7S | 7S | 7S | 7S | |
| Tip and tumble | 7S | 7S | 7S | 7S | 7S | 7S | |
| 3rd row | 50:50 split seat | S | S | S | S | S | S |
| Reclining seat | S | S | S | S | S | S | |
| Feature | Executive | Prestige | Corporate | Platinum | Signature | Signature Knight | |
|---|---|---|---|---|---|---|---|
| 26.03 cm (10.25”) HD audio video navigation system | – | S | S | S | S | S | |
| Bose premium sound 8 speaker system with front central speaker & sub-woofer | – | – | – | S | S | S | |
| Smartphone connectivity | Wireless Android Auto & Apple Carplay | – | S~ | S~ | S~ | S~ | S~ |
| Bluetooth connectivity | – | S | S | S | S | S | |
| JioSaavn music streaming | – | S | S | S | S | S | |
| Digital cluster | Digital cluster with color TFT MID | S | S | S | – | – | – |
| 26.03 cm (10.25”) Multi display digital cluster | – | – | – | S | S | S | |
| Front & rear speakers | – | S | S | S | S | S | |
| Front tweeters | – | S | S | S | S | ||
| Hyundai Bluelink (connected car technology) | – | S | S | S | S | S | |
| Voice recognition | – | S | S | S | S | S | |
| Steering wheel with audio & bluetooth controls | – | S | S | S | S | S | |
| Over-the-air (OTA) updates for map & infotainment | – | S | S | S | S | S | |
| Home to car (H2C) with Alexa** | – | S | S | S | S | S | |
