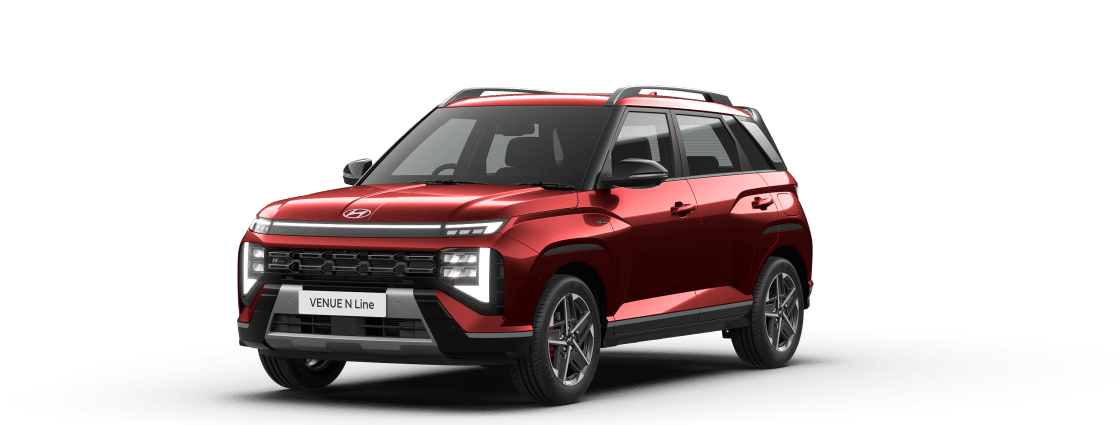

Choose Your Vehicle Colors
Dragon Red
Disclaimer: Colors availability may vary by trims.
Hyundai VENUE N LINE Specification
Overview
| Category | SUV |
|---|---|
| Product Label | 1.0 Kappa Turbo GDi Petrol |
| Model Name | VENUE N LINE |
| Seats | 5 |
-
Performance
- Engine
-
- Engine Type
- Kappa 1.0 Turbo GDi
- Fuel System
- Petrol
- Displacement(cm3)
- 998
- Max. Power
- 88.3 kW (120 PS) @ 6 000 r/min
- Max. Torque
- 172 Nm (17.5 kgm) @ 1500-4000 r/min
- Configuration
- –
- Valvetrain Type
- Transmission
-
- Transmission Type
- 6-speed manual and 7-speed DCT
- Suspension
-
- Suspension Front
- McPherson strut with coil spring
- Suspension Rear
- Coupled torsion beam axle with coil spring
- Suspension Shock Absorber
- –
- Brake
-
- Brake Front
- Disc
- Brake Rear
- Disc
- Fuel
-
- Fuel Type
- Petrol
- Fuel Tank Capacity
- 45 l
-
Dimension
- Exterior
-
- Overall Length (mm)
- 3995 mm
- Overall Width (mm)
- 1800 mm
- Overall Height (mm)
- 1665^ mm
- Wheelbase (mm)
- 2520 mm
- Space
-
- Boot Space
- –
-
Wheels
- Exterior
-
- Size
- 215/55 R17 (D=436.6 mm)
- Front Tyres
- Diamond cut alloy wheel
- Spare wheel
- 195/65 R15 (D=380.2 mm) steel wheel
Hyundai VENUE N LINE Features
| ENGINE & TRIM PLAN | N6 | N10 | |
|---|---|---|---|
| Kappa 1.0 Turbo GDi Petrol | MT/DCT | DCT | |
| Feature | N6 | N10 | |
|---|---|---|---|
| Airbag | Driver & passenger | S | S |
| Side & curtain | S | S | |
| Rollover Sensor | S | S | |
| ABS (Anti-lock braking system) with EBD | S | S | |
| Electronic stability control (ESC) | S | S | |
| Vehicle stability management (VSM) | S | S | |
| Hill assist control (HAC) | S | S | |
| Tyre pressure monitoring system (TPMS) highline | S | S | |
| Disc Brakes | Front disc brakes with red caliper | S | S |
| Rear disc brakes with red Caliper | S | S | |
| Seatbelt pretensioners (Driver, passenger) | S | S | |
| 3 Points seat belts (all seats) | S | S | |
| Seatbelt reminder (all seats) | S | S | |
| ISOFIX | S | S | |
| Emergency stop signal (ESS) | S | S | |
| Impact sensing auto door unlock | S | S | |
| Speed sensing auto door lock | S | S | |
| Driver power window with auto up down & safety | S | S | |
| Immobilizer | S | S | |
| Burglar alarm | S | S | |
| Central locking | S | S | |
| Inside Rear View Mirror | Day & night mirror | S | – |
| Electro chromic mirror (ECM) with Telematics switches | – | S | |
| Automatic headlamps | – | S | |
| Headlamp escort function | S | S | |
| Rear defogger with timer | S | S | |
| Puddle lamps with welcome function | – | S | |
| Parking assist | Rear parking sensor | S | S |
| Rear Camera with dynamic guidelines | S | S | |
| Front parking sensors | – | S | |
| Side parking sensors | – | S | |
| Driver rear view monitor (DRVM) | S | S | |
| Hyundai SmartSense (Advanced driver assist system) | Forward Collision Warning (FCW) | – | S |
| Forward Collision-Avoidance Assist- Car (FCA-Car) | – | S | |
| Forward Collision-Avoidance Assist – Pedestrian (FCA-Ped) | – | S | |
| Forward Collision-Avoidance Assist- Cycle (FCA-Cyl) | – | S | |
| Forward Collision-Avoidance Assist- Junction Turning (FCA-JT) | – | S | |
| Forward Collision-Avoidance Assist- Direct Oncoming | – | S | |
| Blind-Spot Collision Warning (BCW) | – | S | |
| Blind-Spot Collision – Avoidance Assist (BCA) | – | S | |
| Lane Keeping Assist (LKA) | – | S | |
| Lane Departure Warning (LDW) | – | S | |
| Driver Attention Warning (DAW) | – | S | |
| Smart Cruise Control with Stop & Go (SCC with S&G) | – | S | |
| Lane Following Assist (LFA) | – | S | |
| High Beam Assist (HBA) | – | S | |
| Leading Vehicle Departure Alert (LVDA) | – | S | |
| Safe Exit Warning (SEW) | – | S | |
| Rear Cross-Traffic Collision – Warning (RCCW) | – | S | |
| Rear Cross-Traffic Collision – Avoidance Assist (RCCA) | – | S | |
| Parking Collision Avoidance Assist- Rear (PCA-R) | – | S | |
| Surround View Monitor (SVM) | – | S | |
| Blind Spot View Monitor (BVM) | – | S | |
| Feature | N6 | N10 | |
|---|---|---|---|

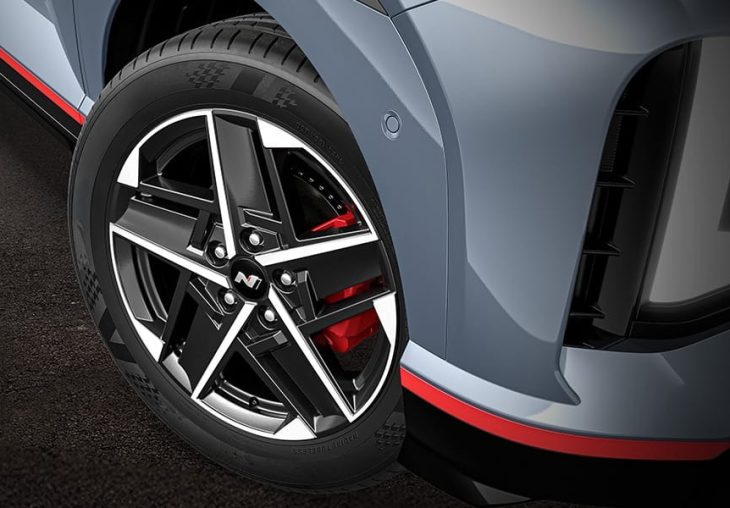

| Wheels | R17 (D=436.6) diamond cut alloys with N emblem | S | S |
| Radiator grille | Dark chrome | S | S |
| Bold skid plate (Front & rear) | S | S | |
| Signature C-pillar garnish | S | S | |
| Roof rails | S | S | |
| Color Highlights (Red / silver#) | Front & rear bumper | S | S |
| Side sill garnish | S | S | |
| N Line emblem | Front radiator grille | S | S |
| Front fendor (RH & LH) | S | S | |
| Tailgate | S | S | |

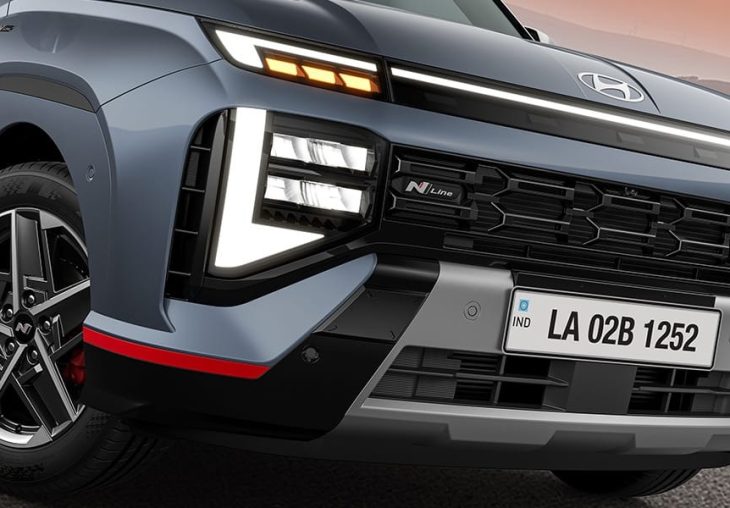

| Lighting | Quad beam LED headlamps | S | S |
| Horizon LED positioning lamp | S | S | |
| LED High Mounted Stop lamp (HMSL) | S | S | |

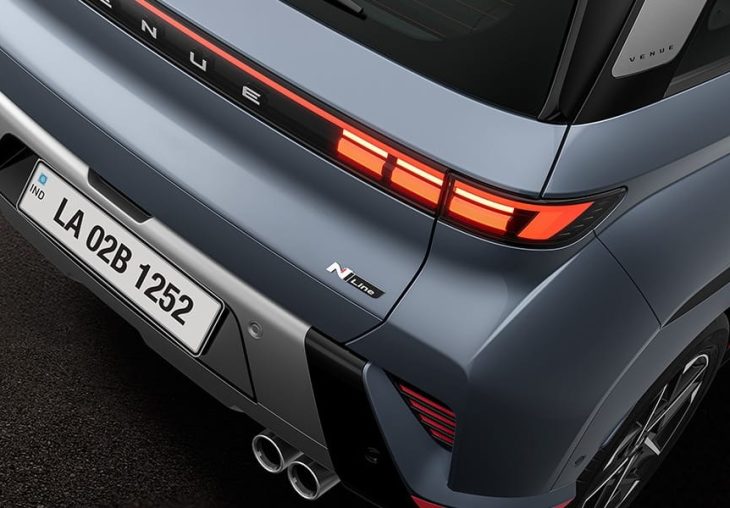

| LED Tail lamps | S | S | |
| Rear horizon LED lamp | S | S | |
| LED Sequential turn indicators | – | S | |
| Turn indicators on outside mirrors | S | S | |
| Outside door mirrors (ORVM) – black painted | S | S | |
| Outside door handles – body colour | S | S | |
| Shark fin antenna | S | S | |

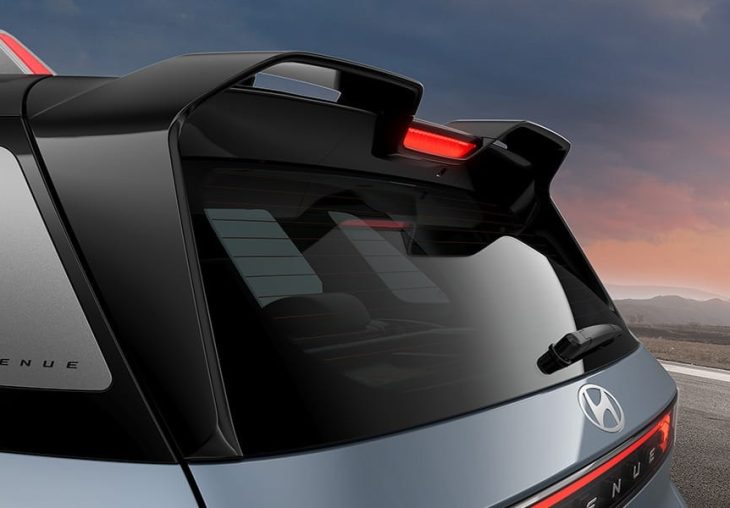

| Rear wing type spoiler – black painted | S | S | |

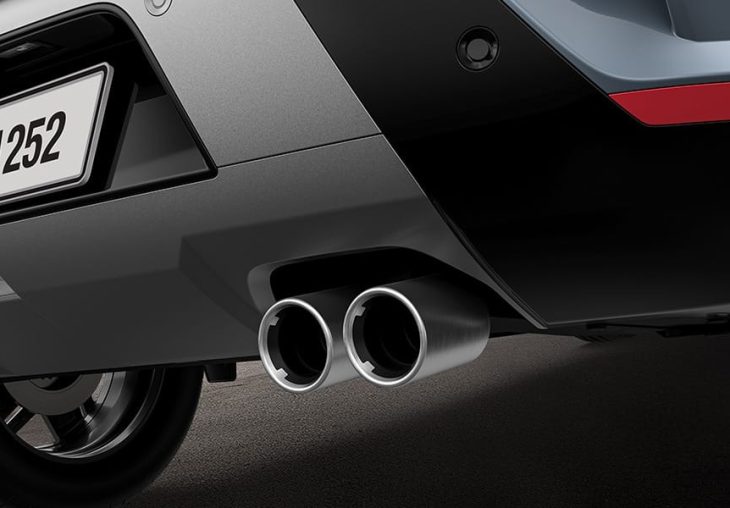

| Twin tip exhaust | S | S | |
| Feature | N6 | N10 | |
|---|---|---|---|
| Dual integrated displays | S | – | |
| Dual curved panoramic displays | – | S | |
| Sporty black interior with red highlights | S | S | |
| Seat upholstery | Sporty Black Leather^^ Seats with N branding | S | S |
| Leather^^ pack | Steering wheel with N emblem | S | S |
| Gear shift knob with N emblem | S | S | |
| Premium door armrest | S | S | |
| Ambient lighting (Sunrise red) | Crashpad | – | S |
| Centre console | – | S | |
| Sporty metal pedals | S | S | |
| Height adjustable headrest | Front | S | S |
| Rear | – | S | |
| Driver seat adjust | Manual height adjust | S | – |
| Electric 4-way | – | S | |
| 60:40 split rear seat | – | S | |
| 2-step rear reclining seat | – | S | |
| Rear window sunshade | – | S | |
| Rear parcel tray | S | S | |
| Feature | N6 | N10 | |
|---|---|---|---|
| Infotainment system | 26.03 cm (10.25”) ccNC infotainment system | S | – |
| 31.24 cm (12.3”) ccNC navigation system | – | S | |
| Smartphone connectivity – Android Auto & Apple Carplay | Wireless | S | S |
| Digital Cluster | Digital cluster with 10.66 cm color TFT display | S | – |
| 31.24 cm (12.3”) Full Digital display cluster | – | S | |
| Bose premium sound 8 speaker system | – | S | |
| Front & rear speakers | S | S | |
| Front tweeters | – | S | |
| Hyundai Bluelink (Connected car technology) | – | S | |
| Bluetooth connectivity | S | S | |
| Steering wheel with audio and bluetooth controls | S | S | |
| Voice recognition** | S | S | |
| Controller Over-the-Air (OTA) vehicle updates | – | S | |
| Feature | N6 | N10 | |
|---|---|---|---|
| Sunroof | Voice enabled smart electric | – | S |
| Air conditioning | Manual | S | – |
| Fully automatic temperature control | – | S | |
| Smart aroma diffuser | – | S | |
| Front row ventilated seats | – | S | |
| Electric parking brake with Auto Hold | S | S | |
| Smartphone wireless charger** | – | S | |
| Drive mode select (Eco,Normal, Sport) | – | S | |
| Traction control modes (Sand, Mud, Snow) | – | S | |
| Paddle shifters | S^ | S | |
| Cruise control | S | S | |
| Keyless entry | Foldable key | S | – |
| Smart key with push button start | – | S | |
| Outside mirrors | Electrically adjustable | S | S |
| Electric folding | S | S | |
| Auto fold | S | S | |
| Remote engine start with smart key | – | S | |
| Front console armrest with storage | S | S | |
| Rear centre armrest with cupholders | – | S | |
| Rear AC vents | S | S | |
| USB charger (C -Type) | Front (x2) | S | S |
| Rear (x2) | S | S | |
| Front & rear power windows | S | S | |
| Power outlet | S | S | |
| Motor driven power steering with tilt Function | S | S | |
| Luggage lamp | – | S | |
| Rear wiper & washer | – | S | |
| Idle stop & go (ISG) | – | S | |
| Passenger vanity mirror | – | S | |
| Map lamps | S | S | |
| Glovebox cooling | – | S | |
